Pioneer® EStar™ 12,000 BTU 22.7 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 115V
SKU: WYS012AMFI22RL-10
Overview
Summary
- Ultra High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 22.7 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 10.0 HSPF2 / 3.38 COP2 efficiency
- Voltage: 110~120 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $74.00
- Heating: $221.00
Refrigerant
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
Important

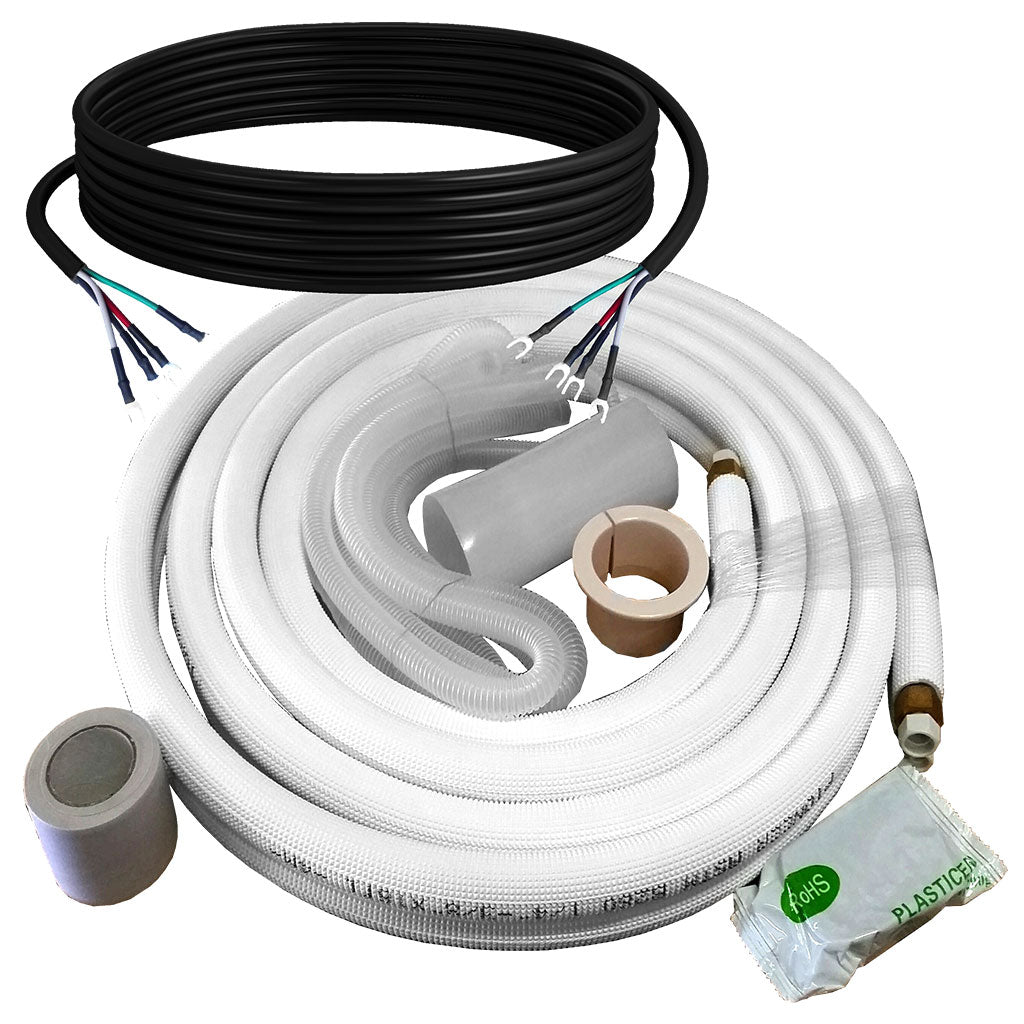

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Wall-Mounted Mini Split
Quantum Series Inverter+ (20 SEER) and Inverter++ (22 SEER)
At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!
More details about Pioneer® WYS Series

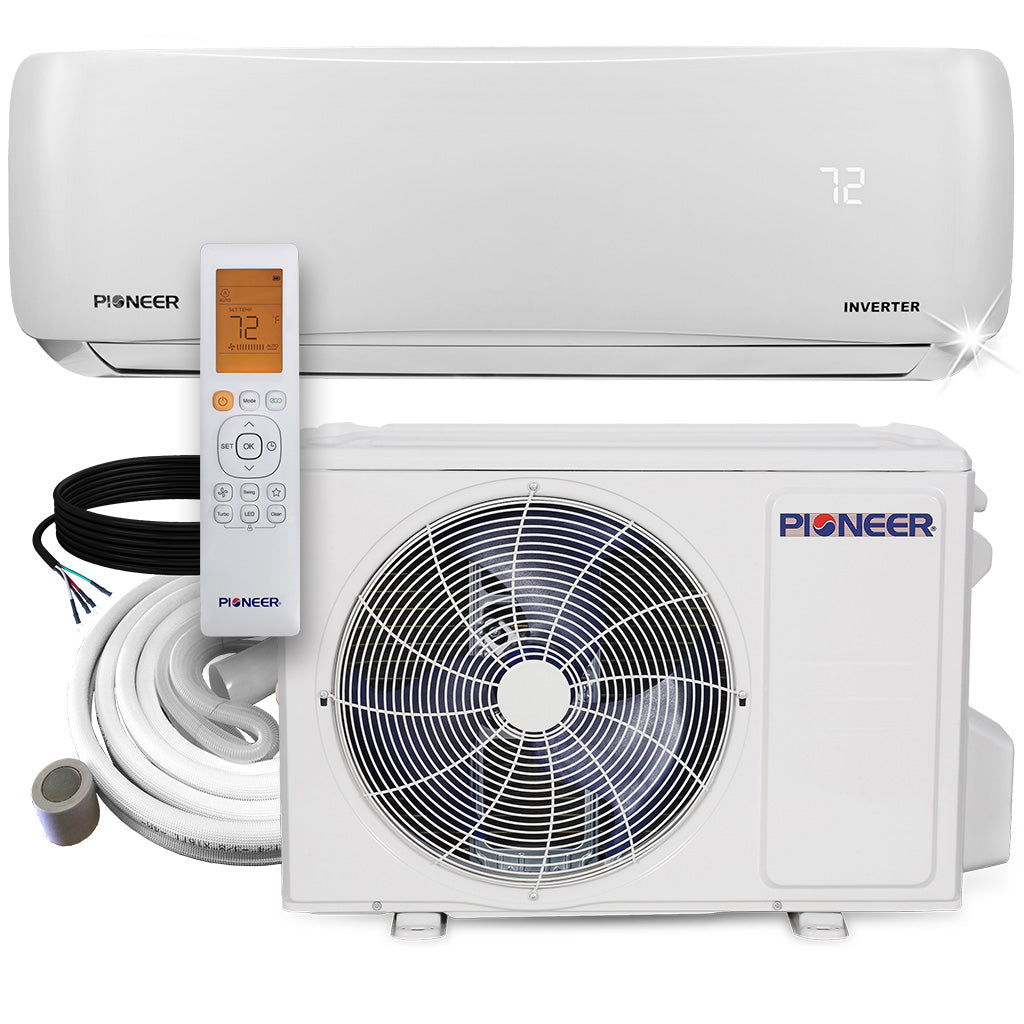

What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
Standard
-
Sleep Mode
The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night. -
Temperature Compensation
Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring. -
Refrigerant Leakage Detect
Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage. -
Anti-cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users. - Emergency start
-
Low Ambient Cooling
With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C. -
1W Standby
Intelligent on-off technology enables Pioneer products automatically enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving. -
2-way Draining
Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation. -
Follow Me (Remote Thermostat)
Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort. -
46°F Heating
In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather. -
Chassis Heating Belt
Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.
Optional
-
High Density Filter
Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%. -
Wireless Control
With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back. -
Remote in Engineer Mode
Technical Information
Certifications
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,500~12,150 BTU/h
- Cooling SEER2: 22.7 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,600~12,904 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 7.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.38 / 2.00 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~450 Sq.F

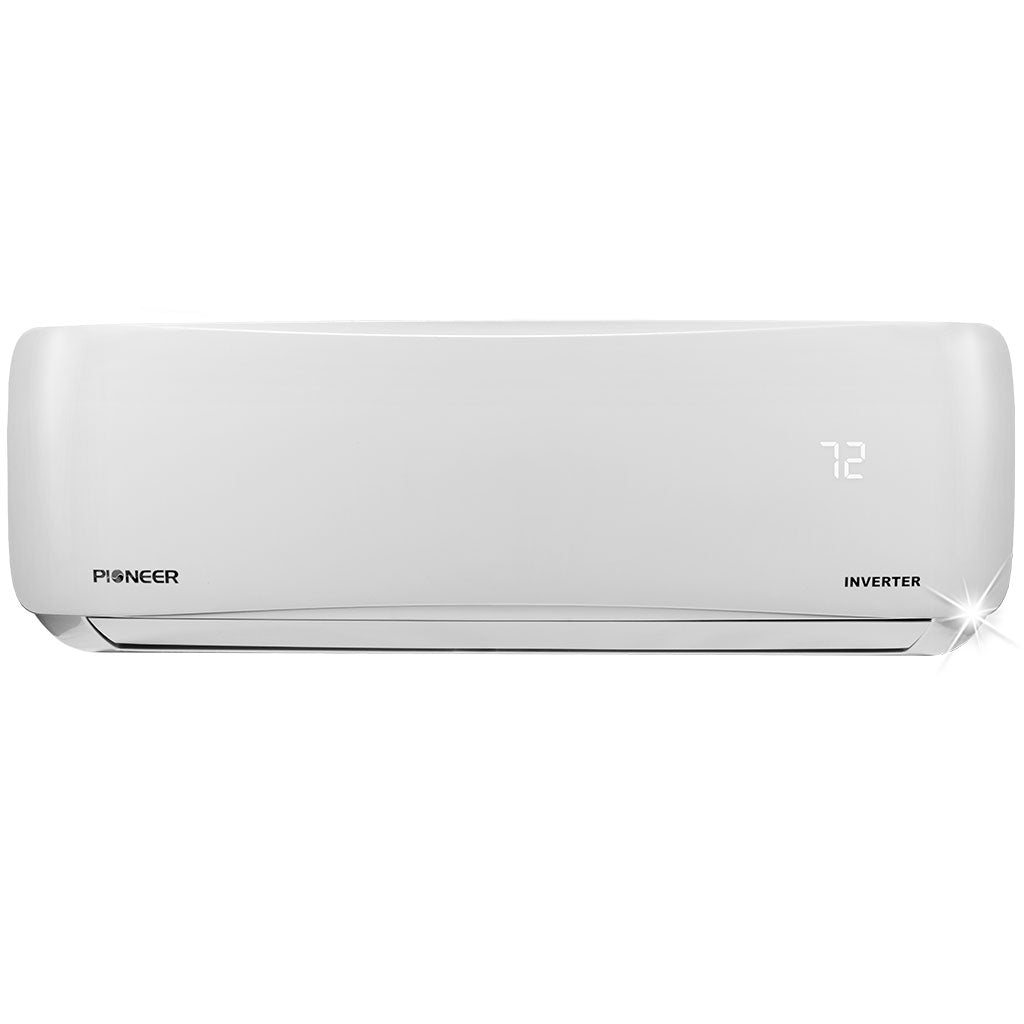

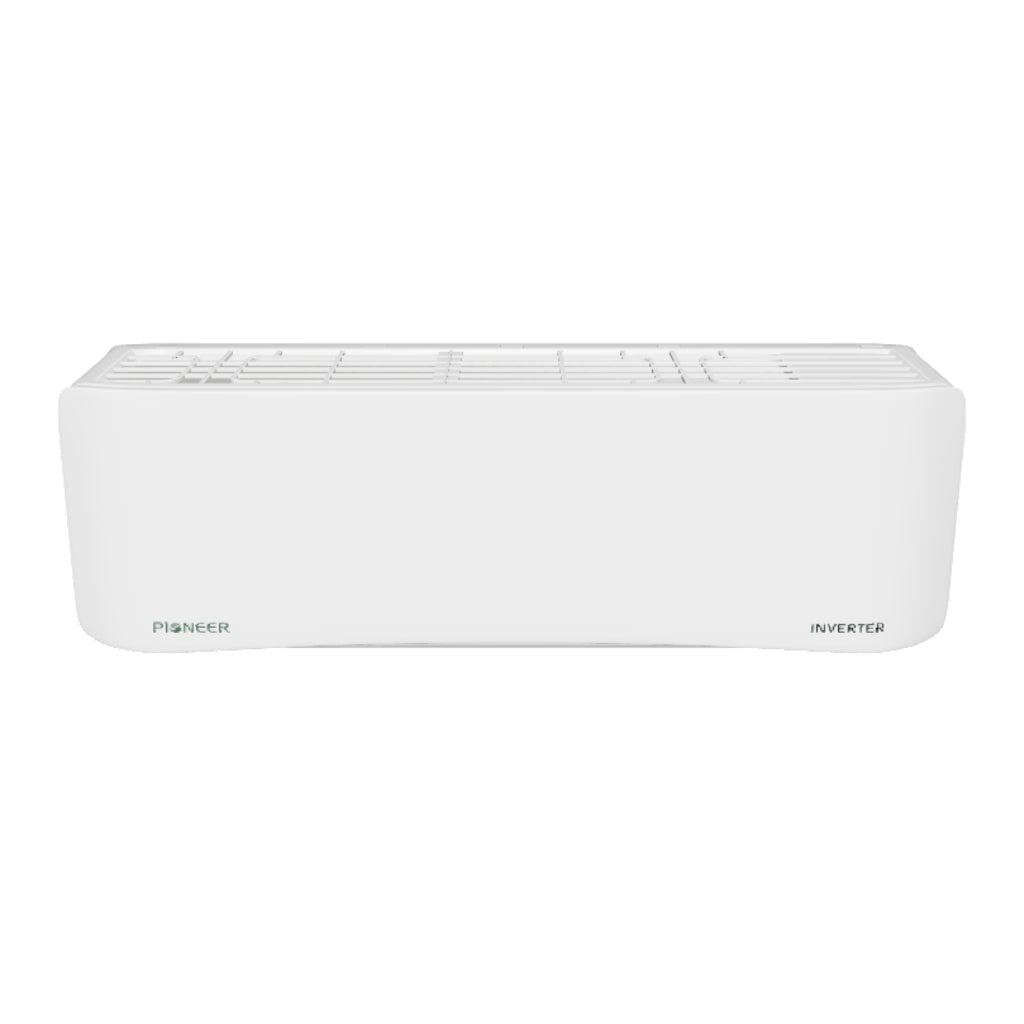

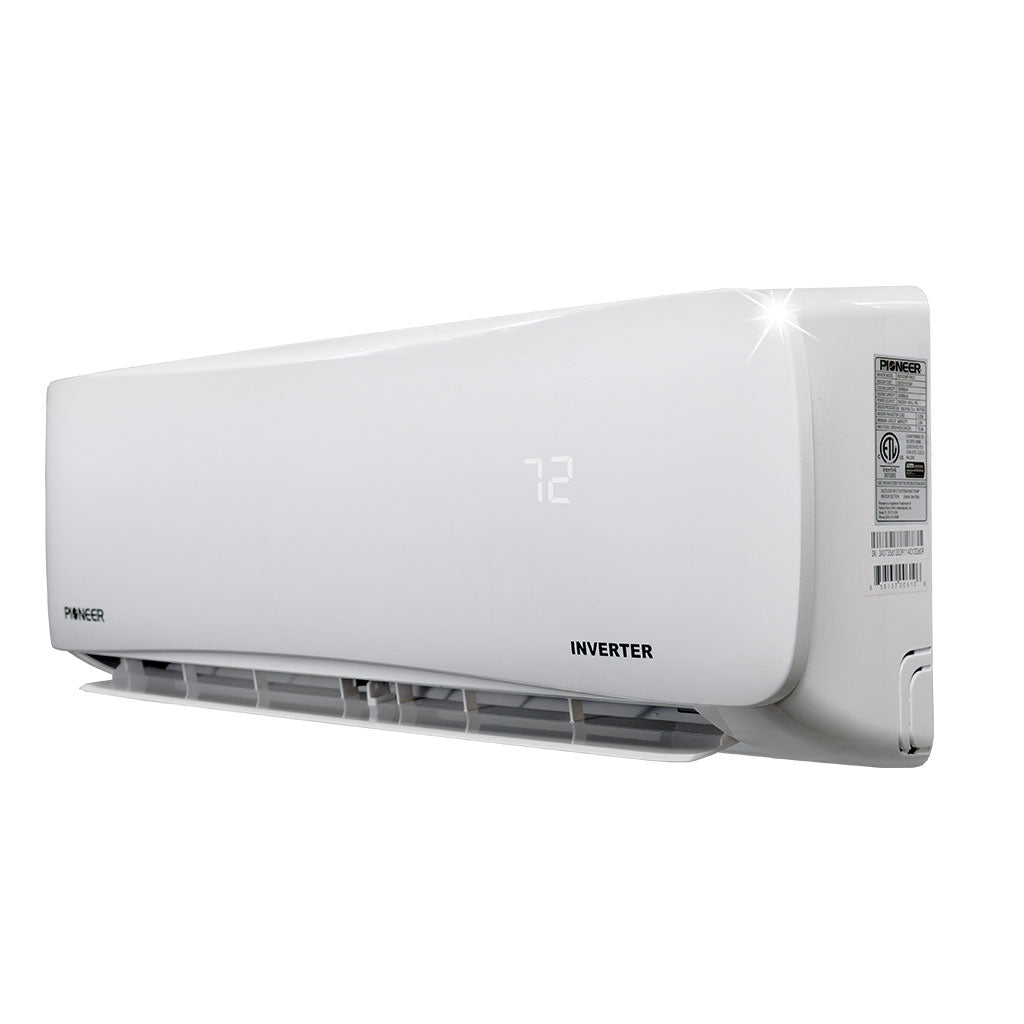

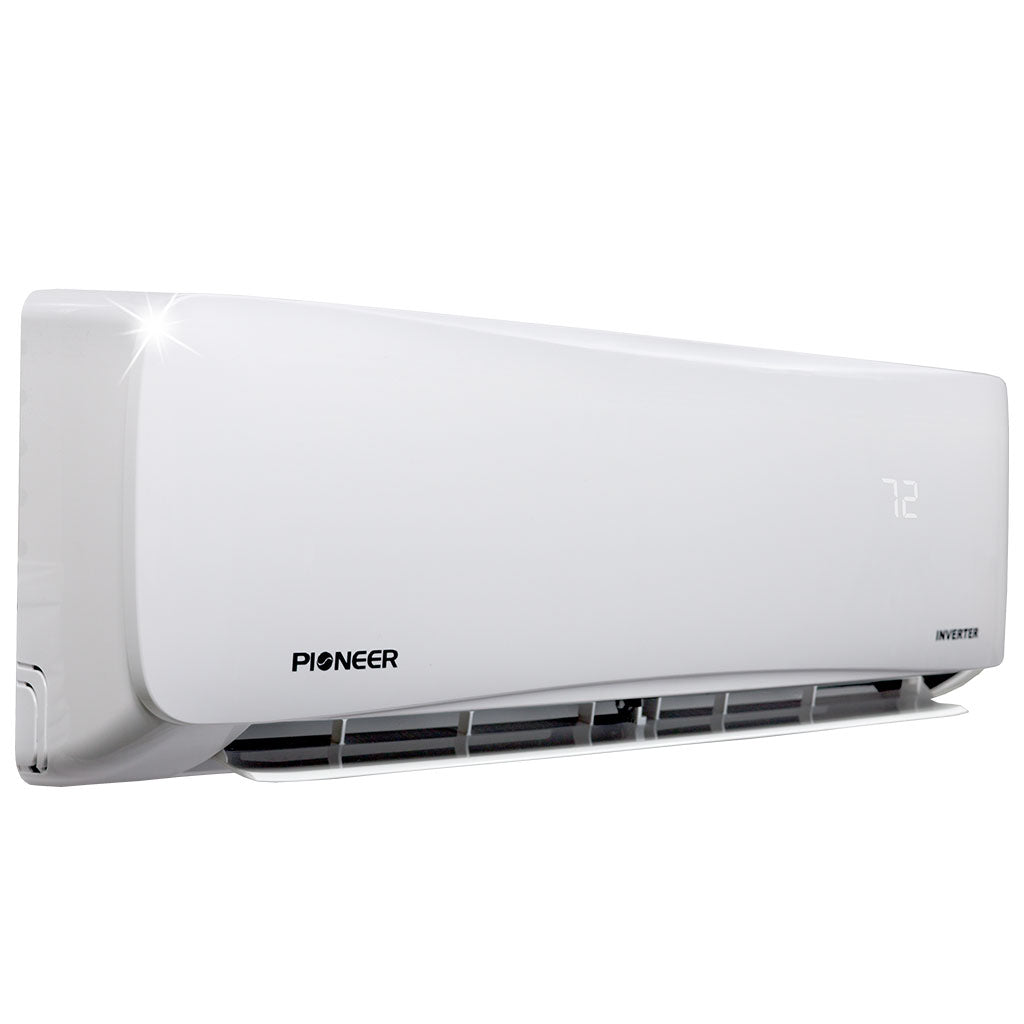

Indoor Unit Data
- Model Number: WS012AMFI22HLE
- Air Flow (Hi/Med/Lo): 306 / 212 / 147 CFM
- Sound Level (Hi/Lo): 36.0 / 23.0 dB(A)
- Net Dimensions (WDH): 31.5 x 7.3 x 11.6 Inches
- Carton Dimensions (WDH): 34.5 x 11.25 x 15 Inches
- Net / Gross Weight: 24 / 34.2 Lbs

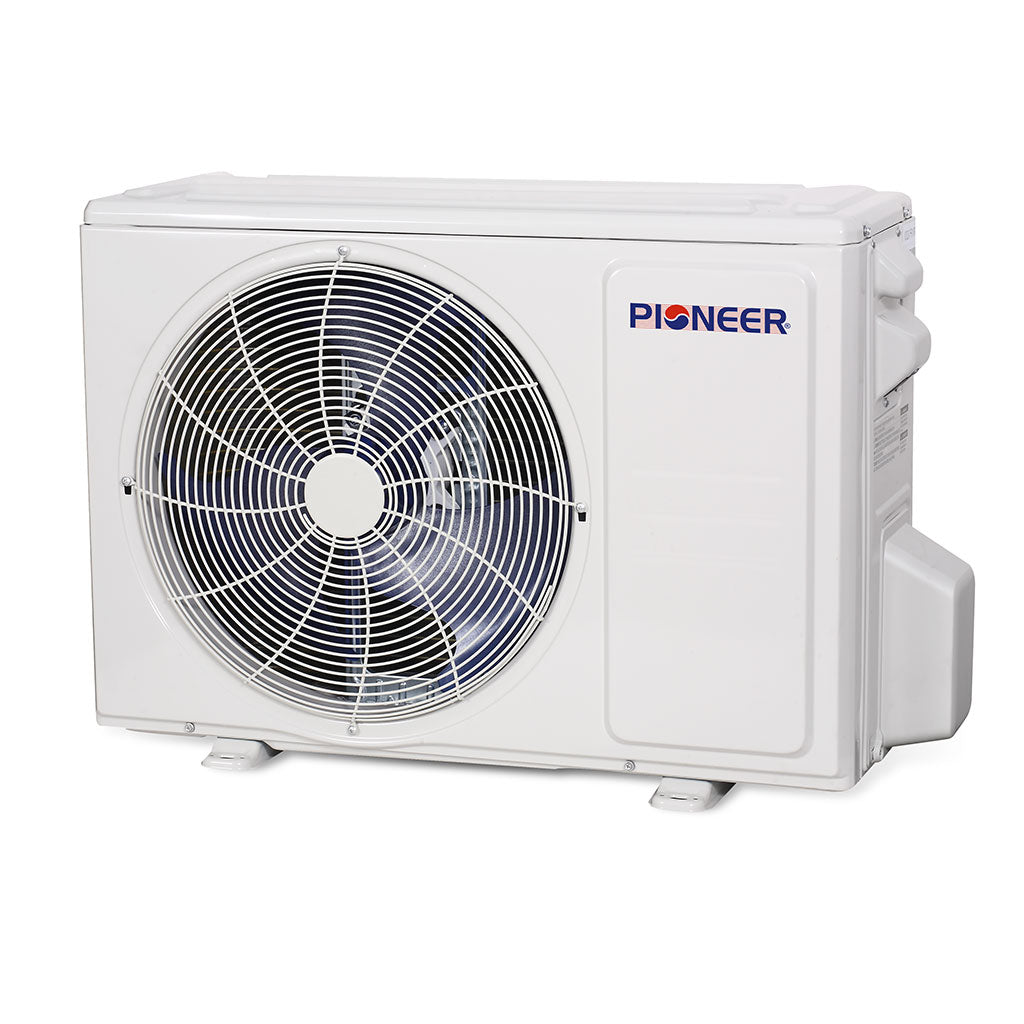

Outdoor Unit Data
- Model Number: YN012AMFI22RPE
- Sound Level: 52.5 dB(A)
- Breaker Needed: 20A (single-pole)
- Net Dimensions (WDH): 30.2 x 11.8 x 21.7 Inches
- Carton Dimensions (WDH): 34.8 x 13.25 x 24 Inches
- Net / Gross Weight: 66.8 / 72.3 Lbs
Manuals & Downloads
Free Shipping For All Orders Over $49
For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.
Click here for information on Returns and Refunds
Shipping Details
We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.
Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.
Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.
We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.
We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.
Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.
We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.
You may also like
More from Best-Selling Mini Split AC Systems
Recently viewed
QUESTIONS & ANSWERS
Ask a Question-
how much clearance is required above the wall unit
We recommend 4-6 inches, 6 would be best.
-
What size line set is needed for this unit?
This would take 1/4"-1/2" diameter lines.
-
Will a portable 3500 watt continuous generator be able to power your energy star 12,000 btu 21.5 seer mini split during power outages?
Most certainly. This unit draws a peak of 1.5kW (average is about half that) so a 3.5kW generator should have no issue keeping the unit running even in full demand.
-
what size area will this unit handle?
For typical scenarios we recommend this unit for managing between 200 and 450 square feet.
-
The section on refrigerant says, R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit. Does this mean the line set can only be 25 ft.? I see an option for a 50 ft. installation kit. How does that work?
The way it works is that the outdoor condensing unit is pre-charged with R410a to support line lengths up to 25 ft long. You can have a line up to 80 ft long, but for longer than 25' lineset runs, you will need to top off additional refrigerant during installation in order to rebalance the contained charge.
-
How many lbs of R410 is in this unit?
This system is factory preloaded with 40.60 ounces of R410a.
-
what size wire to run to box??
This takes a 20A breaker and 12 AWG wire.
-
What is minimum temperature for operational heating of this unit?
This particular system can HEAT down to -13°F outside temperatures.
-
What is the amp draw for this unit?
This particular system is rated 8.4A in cooling mode and 9.8 in heating mode.
-
Does this have the anti mildew option?
There is a "self-clean" feature to dry the coils, and the blower wheel is treated with an anti-mildew coating.
-
Does the air handler have manual vents so I can control the direction of air flow?
This model has a motorized up-down louver, and a manually adjusted left-right louver. On the Diamante and Hyperformance models, both are motorized.
-
How do I determine what size line set I will need for my install?
That is essentially the distance between where you plant to mount the interior and exterior units, as that is the set of pipes that connects the two together.
-
Are these two model numbers for the same unit. WS012AMFI22HLE vs WS012AMFI22RL I'm looking to purchase the inverter ++ unit and found these two model numbers. thank you
WS012AMFI22RL is a combination SKU entailing the full set of both indoor unit (WS012AMFI22HLE) and outdoor unit (YN012AMFI22RPE).
-
Hi there, I have a 12k BTU system I just recieved! I want to install it in my basement. Is there a way to drain the condensation vertically? Thanks.
You would need to add a condensate pump to pump it upwards. SKU: CP-RE-MWP-06
-
How much clearance is needed at back of outside unit to another surface?
It would need 12 inches of clearance behind when ground-mounted and 3 inches when wall-mounted.
