Name: Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
Brand: Parker Davis HVAC Systems, Inc.
SKU: UB024GMFILCFHD-16
Price: 808.0 USD
Availability: OutOfStock

Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V

Multi Zone Indoor Section Floor-Ceiling Mount Split

Multi Zone Indoor Section Floor Console SplitMulti Zone Indoor Section Floor-Ceiling Mount Split

Free Shipping for Orders Above $49

Wholesale Price Directly From Factory

Secure and Versatile Payment Options

Low stock - 1 item left
Inventory on the way

Price Save $231

Quantity

[{"id":35997959184,"title":"10 Ft","option1":"10 Ft","option2":null,"option3":null,"sku":"UB024GMFILCFHD-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - 10 Ft","public_title":"10 Ft","options":["10 Ft"],"price":80800,"weight":37195,"compare_at_price":99900,"inventory_quantity":-5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35998042896,"title":"16 Ft","option1":"16 Ft","option2":null,"option3":null,"sku":"UB024GMFILCFHD-16","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - 16 Ft","public_title":"16 Ft","options":["16 Ft"],"price":85800,"weight":38555,"compare_at_price":108900,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35998042960,"title":"25 Ft","option1":"25 Ft","option2":null,"option3":null,"sku":"UB024GMFILCFHD-25","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - 25 Ft","public_title":"25 Ft","options":["25 Ft"],"price":91800,"weight":40370,"compare_at_price":114900,"inventory_quantity":-5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35998043024,"title":"33 Ft","option1":"33 Ft","option2":null,"option3":null,"sku":"UB024GMFILCFHD-33","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - 33 Ft","public_title":"33 Ft","options":["33 Ft"],"price":98300,"weight":41730,"compare_at_price":119900,"inventory_quantity":-5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35998043088,"title":"50 Ft","option1":"50 Ft","option2":null,"option3":null,"sku":"UB024GMFILCFHD-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - 50 Ft","public_title":"50 Ft","options":["50 Ft"],"price":110800,"weight":44452,"compare_at_price":136900,"inventory_quantity":-5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":13333245362218,"title":"WITHOUT INSTALLATION KIT","option1":"WITHOUT INSTALLATION KIT","option2":null,"option3":null,"sku":"UB024GMFILCFHD","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® Multi Zone 24,000 BTU Quantum Series Floor-Ceiling Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - WITHOUT INSTALLATION KIT","public_title":"WITHOUT INSTALLATION KIT","options":["WITHOUT INSTALLATION KIT"],"price":70800,"weight":33566,"compare_at_price":88900,"inventory_quantity":-5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Overview

Summary

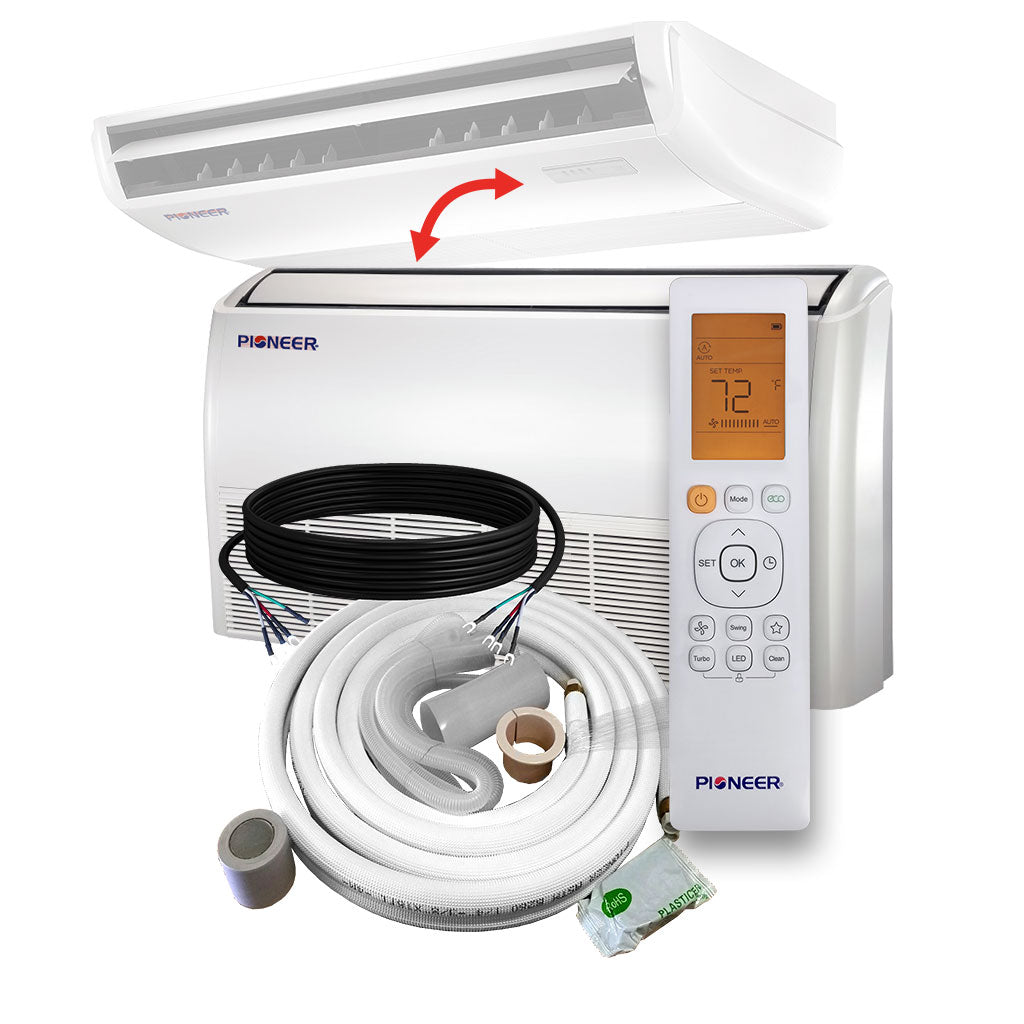

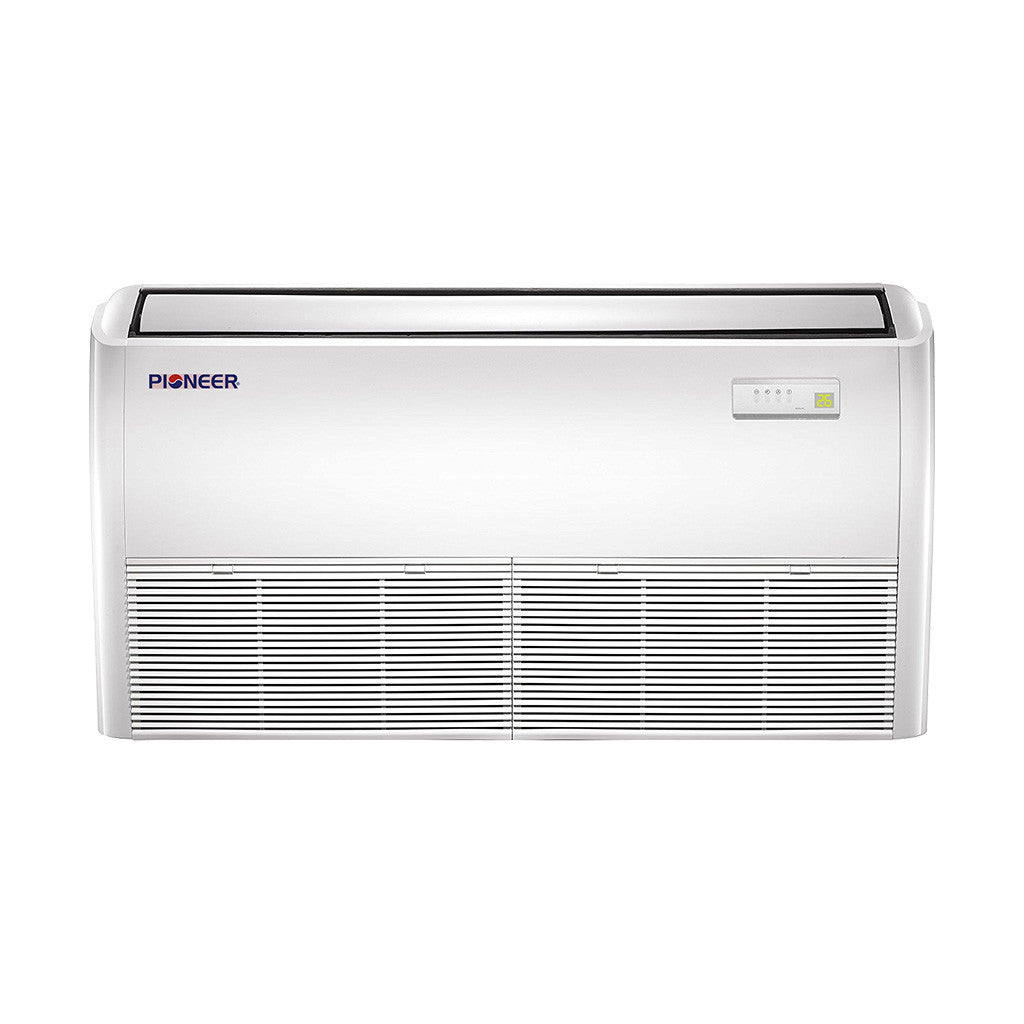

Multi Zone Split Ductless Floor / Ceiling Flex Mount Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units Only.

Important

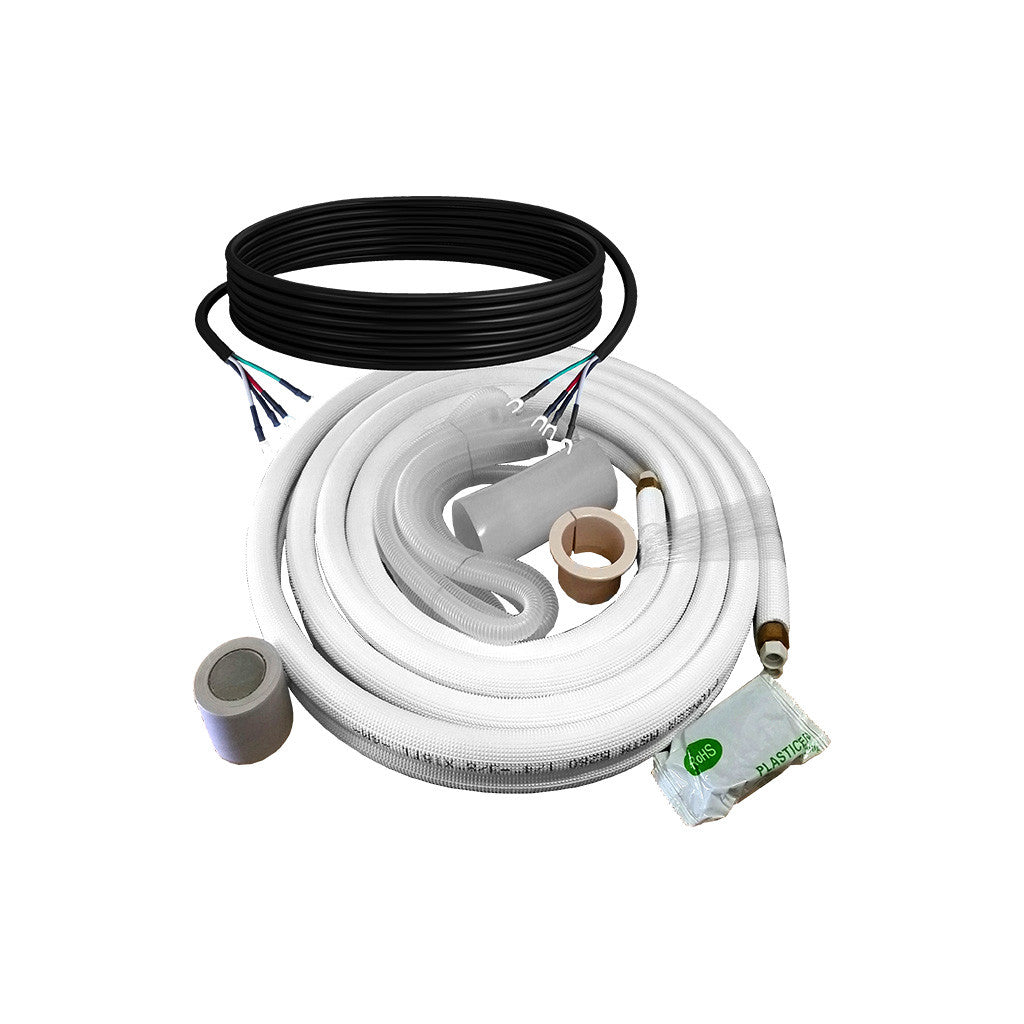

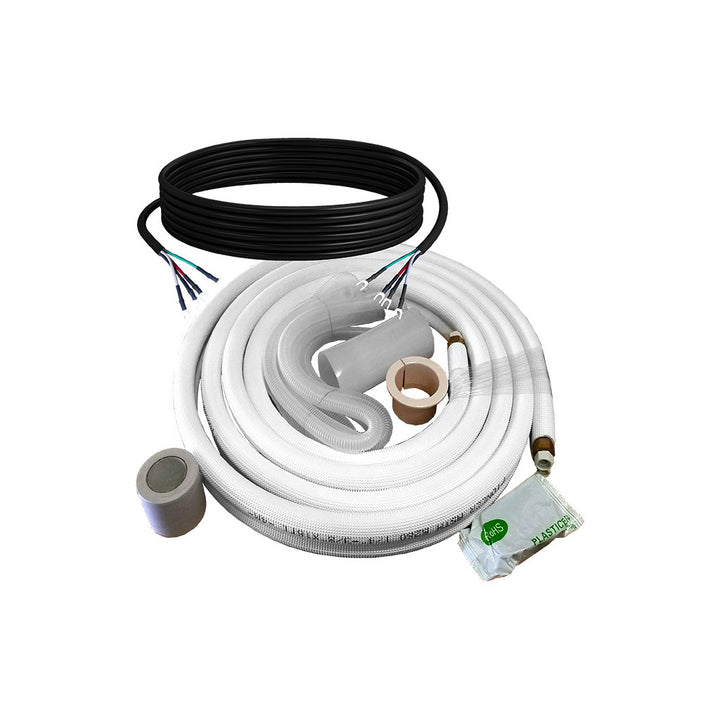

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the 4 kinds of outdoor units we offer as follows:

Quad Zone: YN040GMFI22M4E
Quint Zone: YN050GMFI22M5E

Notes

Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

What's Included

Indoor Unit
Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Our Guarantee

5 year parts limited warranty
5 year compressor limited warranty

Technical Information

Certifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Capacity: 24,000 BTU/h
Cooling SEER: 20.0
Heating Capacity: 24,000 BTU/h
Heating HSPF: 11.0
Suitable Area: 650~900 Sq.F
Air Flow (Hi/Med/Lo): 759 / 695 / 630 CFM
Sound Level (Hi/Med/Lo): 53 / 48 / 42 dB(A)
Net Dimensions (WDH): 42" x 26"-1/2 x 9"-1/4
Carton Dimensions (WDH): 45" x 29"-3/4 x 12"-3/8
Net / Gross Weight: 58.5 / 69 Lbs
